Customizable heavy duty multipole connectors

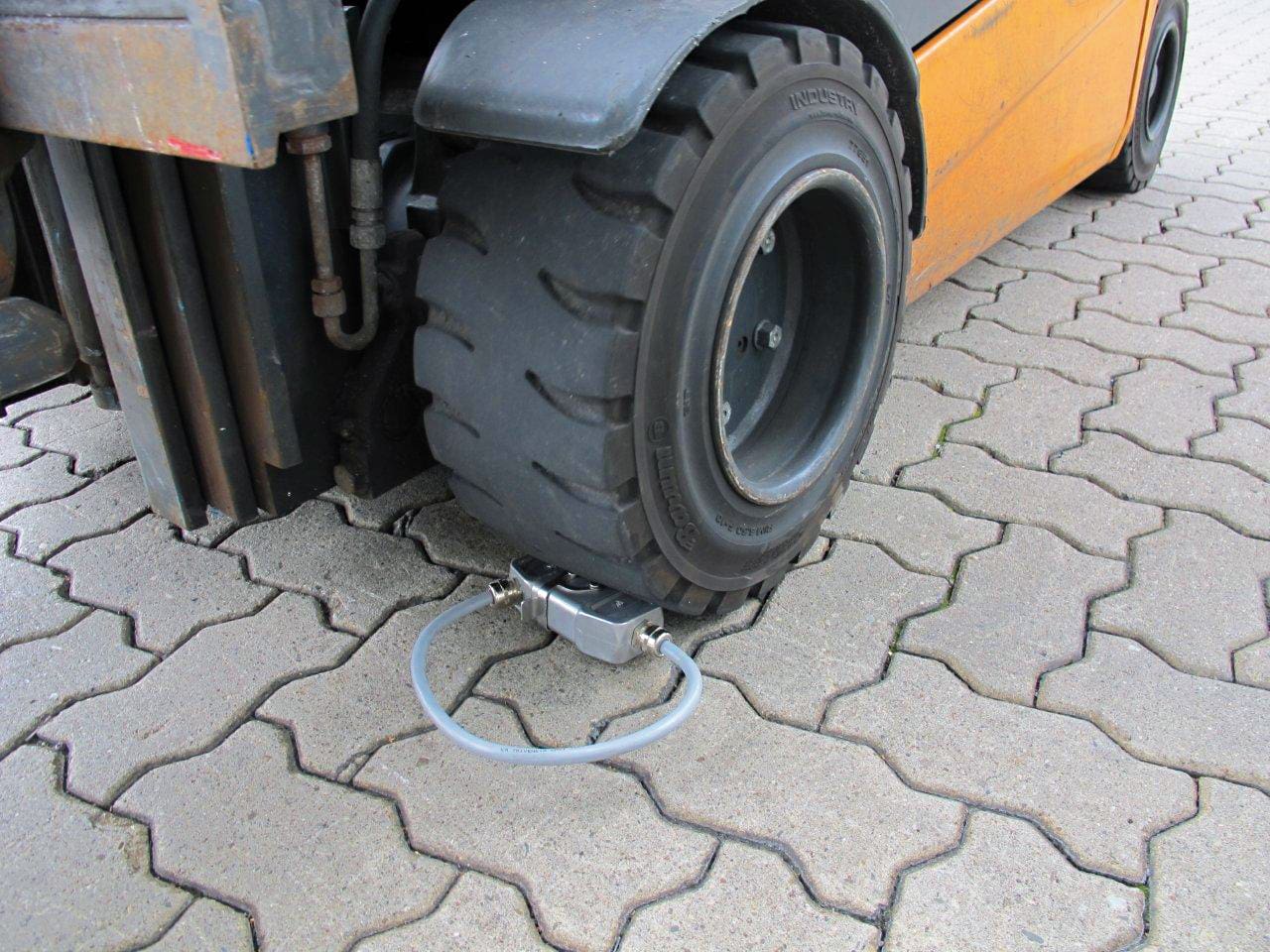

Able to withstand a loaded forklift truck running over it or an intense jet stream of water, the revos connector is the best choice for highly reliable electrical connections in your factory. Choose the housing, entry, and pole count (inserts) that you need for your specific application. The revos modular gives the most customized and comprehensive options with the ability to combine data, power, and communication connections in one connector!





Play

BENEFITS

  • Protection against mechanical stress
  • Protection against environmental
  • Customizable to application
  • All-in-one connector for data, power and communication
  • UL Recognized PVVA2 and PVVA8

FEATURED PRODUCTS

REVOS® MODULAR – ALL-IN-ONE

Bring together data, power, and communication in one customizable connector. All of the benefits of the revos® basic line of heavy-duty connectors plus the additional connection you need for your modern factory.

LEARN MORE

TECHNICAL DATA (click to expand)

Power Supply Signal Communication Ports Frame Sizes
Power Supply Signal Communication Ports Frame Sizes
Current Rating 16 A to 40 A
400 V to 830 V		 10 A
160 V to 250 V
Poles 3, 4, 5, 8, and 20 12 and 17 poles
Connection Tech Crimp, axial, and spring clamp Crimp
Ethernet, RJ45, and 2, 3, 4, and 6 slots


REVOS BASIC

Classic industrial connectors are made of die-cast aluminum with a powder-coated surface. The contact inserts are available in a wide variety of application-specific designs. The hood type, locking mechanism, and cable entry are all customizable.

The revos BASIC connectors meet the toughest requirements and are used in all types of applications for machine building or anywhere power and control signals need to be connected.

BROWSE CATALOG

TECHNICAL DATA (click to expand)

Connection Technologies Screw, crimp, spring, push-in
Rated Current 16 A
Rated Voltage Up to 690 V
Numbers of poles Up to 48
Contact surface Tin, silver, gold


REVOS POWER

revos POWER contact inserts and adapter units are designed for currents up to 100 A and are also available in mixed amperage contact versions – perfectly protected within the revos BASIC housing line. These powerful connectors are used in wind power plants, construction machinery, utility vehicles, machine building, control systems, and larger drives.

BROWSE CATALOG

TECHNICAL DATA (click to expand)

Connection Technologies Screw, crimp
Rated Current Up to 100 A
Rated Voltage Up to 690 V
Contact surface Tin, silver
Protection rating Up to IP65
Housing line BASIC


REVOS MINI

The robust revos MINI is the right choice for tight spaces. Its compact design fits into applications for machine power, control, and switching systems as well as small motors and lighting technology. Housings are available in metal or plastic.

BROWSE CATALOG

TECHNICAL DATA (click to expand)

Connection Technologies Screw, crimp
Rated Current Up to 16 A
Rated Voltage Up to 690 V
Number of poles 3 to 12
Contact surface Tin, silver, gold
Protection rating Up to IP65


UL RECOGNIZED REVOS CONNECTORS

Wieland has recently certified the following revos connectors to the new UL categories PVVA2 / PVVA8.

UL RECOGNIZED REVOS PRODUCT CATEGORIES (click to expand)

Product Categories Male Insert Female Insert
revos Basic Screw BAS STS 24/25/50 BAS BUS 24/25/50
revos Basic Spring BAS STF 24/25/50 BAS BUF 24/25/50
revos Basic Adapters BAS SAS LL 24/40/50 BAS BAS LL 24/40/50
revos Power 6 pole POW STS 6/60/40 AG POW BUS 6/60/40 AG
revos Power 4 pole POW STS 4/16/64 AG POW BUS 4/16/64 AG
revos Power Adapters POW SAS WR 6/60/40 AG POW BAS WL 6/60/40 AG
revos Q 8 pole Q STC 8/50 Q BUC 8/50
revos Q 4/2 pole Q STC 4/2 40/25 Q BUC 4/2 40/25
